MISURATORE CO2 E TEMPERATURA

Name: MISURATORE CO2 E TEMPERATURA
SKU: COT212-HOS
Availability: InStock

COD: COT212-HOS

Prezzo su richiesta

Hai bisogno di aiuto? Chiamaci 049.2021144

Categorie: USB, Misuratori CO e CO2

Descrizione
Scheda tecnica

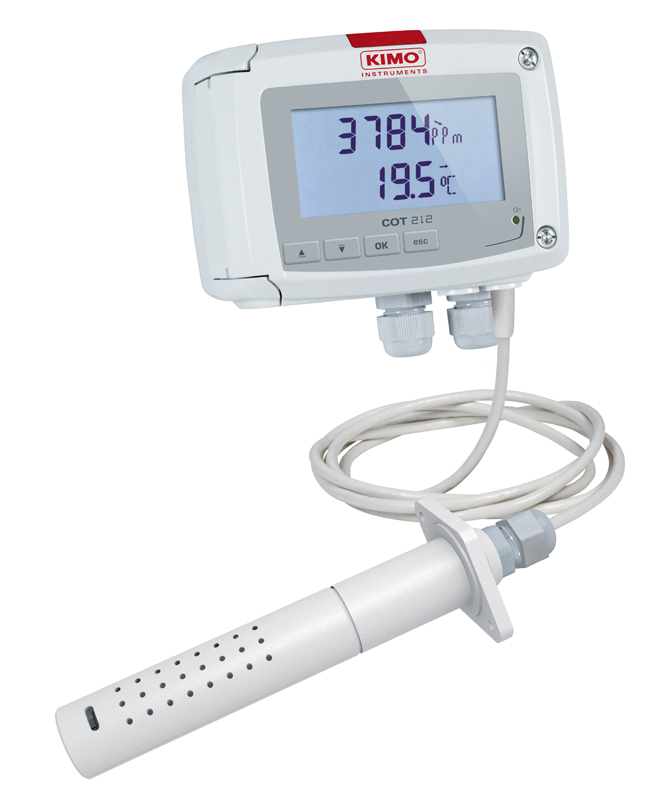

Rilevatore COT212-HOS per la misura di CO2 e Temperatura
110/230 Vac – con display – versione AMBIENTEApplicazioni Tipiche
Alimentare, cabine di verniciatura oem, farmaceutico e chimico, riscaldamento, condizionamento e ventilazione, didattico, ingegneria e studi tecnici, laboratori, magazzini, logistica e trasporti, musei e biblioteche, ospedalieroPunti Chiave
– range configurabile da 0 a 5000 ppm * e da 0 a 50 °
– uscita analogica a 4 fili 0-5 / 10 V o 0 / 4-20 mA
– Indicatore di tendenza
– Custodia ABS V0 IP65
– Montaggio del sistema “¼ di giro” con piastra di montaggio a parete
– Materiale: ABS V0 come da UL94
– Protezione: IP65
– Display: 75 x 40 mm, LCD 19 cifre 2 righe
– Altezza cifre: Valori: 10 mm; Unità: 5 mm
– Pressacavo: per cavi max. Ø 8 mm
– Peso: 320 g

Caratteristiche Tecniche
Temperatura
Measuring range From 0 to +50 °C
Unit of measurement °C / °F
Accuracy* ±0.3°C
Response time T90 = 0.9 second for Vair = 1 m/s
Resolution 0.1 °C
Type of sensor NTC
Type of fluid Air and neutral gases

CO2
Measuring range From 0 to +5000 ppm
Other available range : from 0 to 20 000 ppm
Unit of measurement ppm
Accuracy* From 0 to 5000 ppm : ±3% of the measured value ±50 ppm, From 0 to 20 000 ppm : ±5% of the measured value ±100 ppm
Response time T63 = 35 s
Resolution 1 ppm
Type of sensor Infrared sensor
Type of fluid Air and neutral gases

SKU: COT212-HOS

scarica la scheda in PDF
