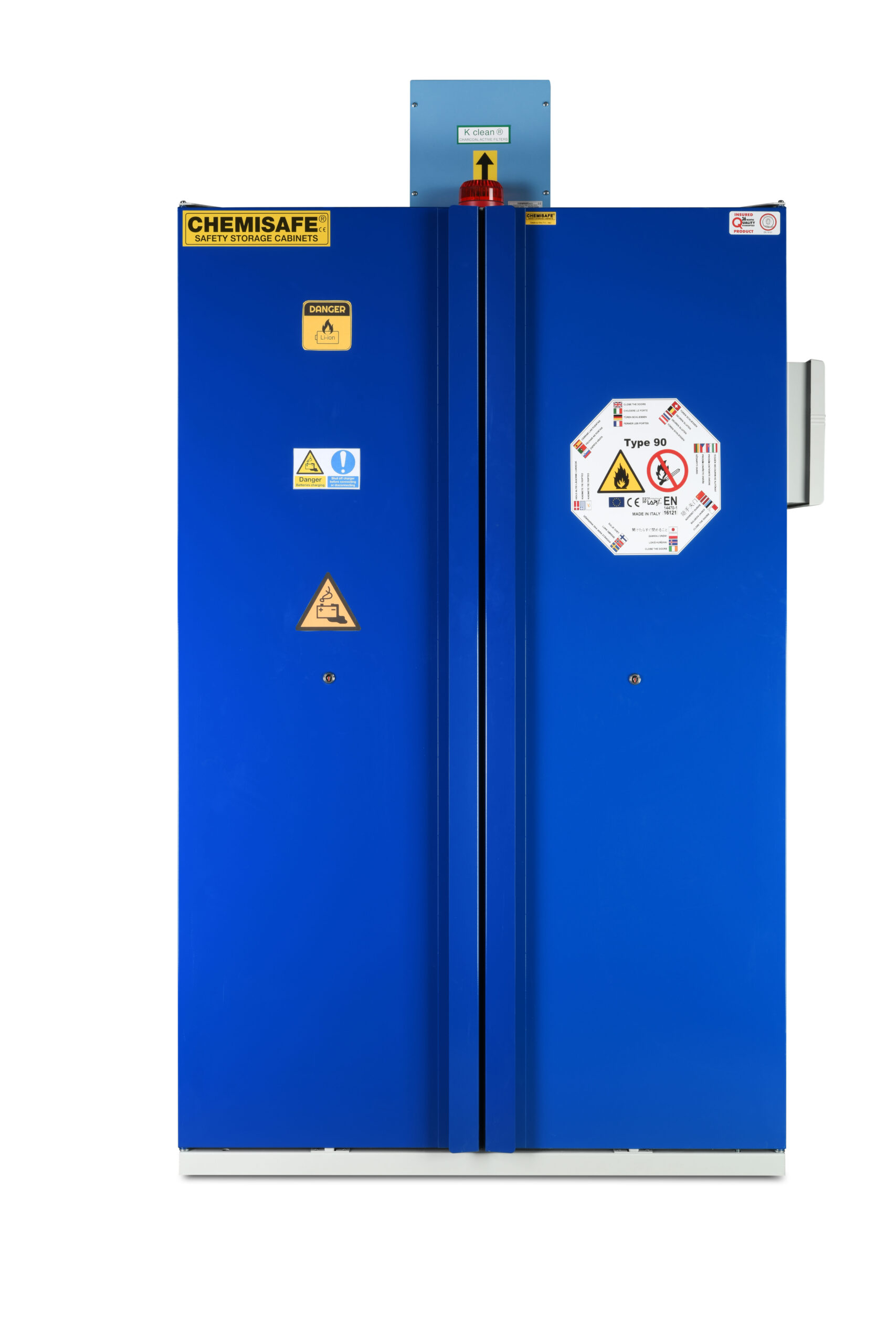

LITHIUMSAFE – SAFETY CABINET FOR STORAGE OF LITHIUM BATTERIES

➔ MAIN FEATURES:
– Completely made of 1/1.5 mm thick cold-bent sheet steel, painted with acid-proof powder coating and then passed through a heat tunnel at 200 °C.
– Special insulation consisting of high-density fibreboard (free of fibre ceramics) for high temperatures (800 °C) and calcium sulphate panels
– Internal finishing panels in melamine laminate with high resistance to vapours, even aggressive ones
– Certification according to the new EN 14470-1 TYPE 90 standard
– Automatic hydraulic door closing when temperature exceeds 47 °C
– Key lock and door lock
– Adjustable feet
– Automatic closing valves (70 °C) of the air inlet and outlet ducts, certified 90 minutes, located on the top and bottom of the cabinet
– Ejection hole 100 mm in diameter on top of cabinet
– Anti-spark hinge ensuring perfect door solidity
– 3 cm thermodilating gasket (DIN 4102)

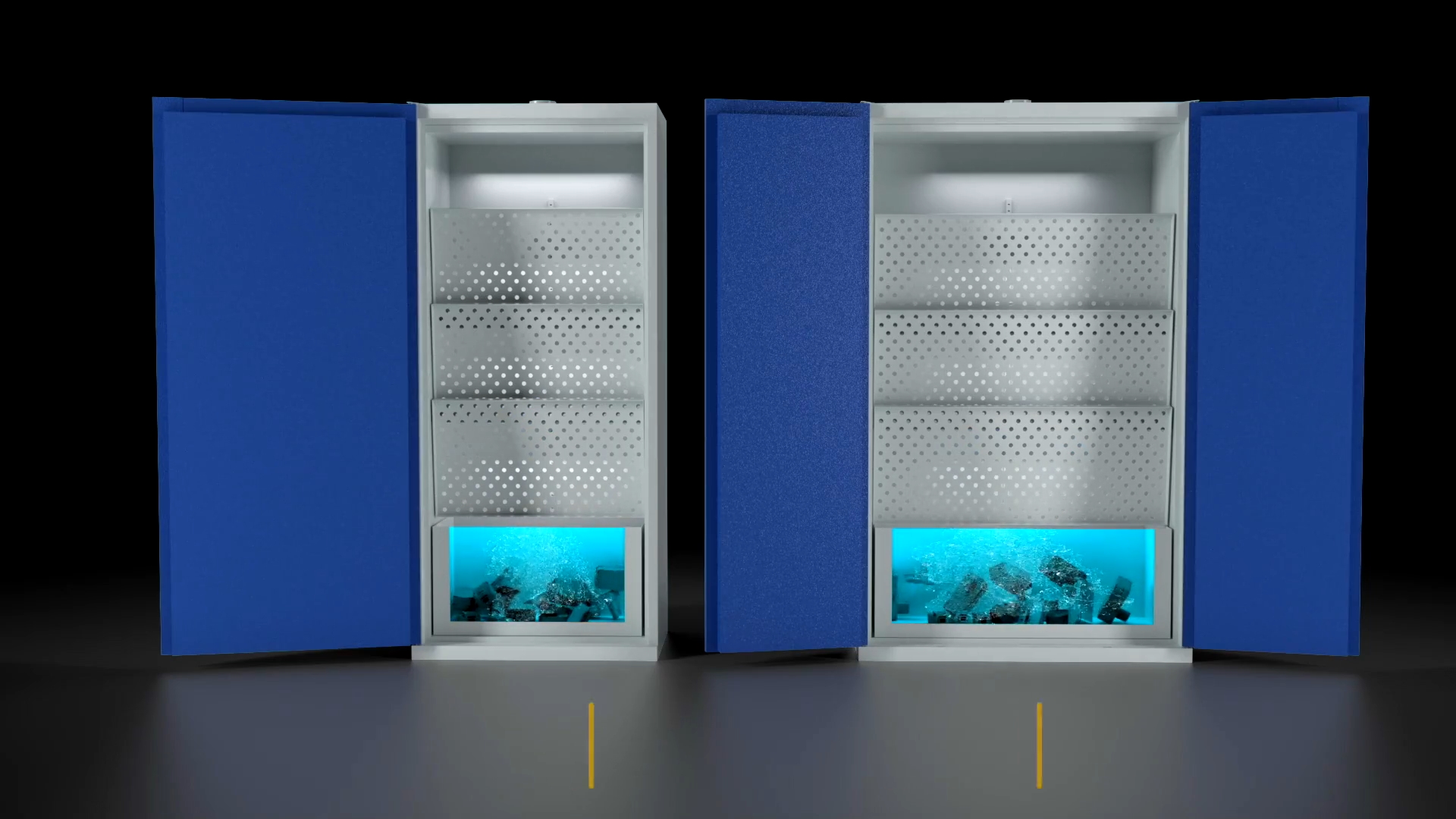

– 4 perforated shelves mm 1094 x 420 x 39 A
– Grounding clamp to prevent electrostatic charges

➔ THE FOLLOWING VERSIONS ARE AVAILABLE

code / description / external dimensions

CSF239BMY11D/L Safety cabinet for lithium batteries – 1 door right mm 595x600x1950
CSF239BMY11S/L Safety cabinet for lithium batteries – 1 door left mm 595x600x1950
CSF240BMY11D/L Safety cabinet for lithium batteries – 1 door on the right 895x600x1950 mm
CSF240BMY11S/L Safety cabinet for lithium batteries – 1 left door 895x600x1950
CSF232BMY11/L Safety cabinet for lithium batteries – 2 doors 1200x600x1950

ACCESSORIES (optional)

CODE DESCRIPTION DIMENSIONS (WxDxH) mm
LSSA Automatic extinguisher for 60 – 90 -120 cabinets
LSCR Automatic fire extinguisher with smoke sensor control panel and rotating beacon for 60 – 90 -120 mm cabinets
S12 12 UNEL 220V power sockets with thermal protection
CEGSM GSM dialer disc
RIP60LS Perforated shelf for 60 cabinets 490x420x39
RIP90LS Perforated shelf for 90 cabinets 695x420x39
RIP120LS Perforated shelf for 120 cabinets 1090x420x39
DIAM125BP Spark arrester in wired box, switch and fuses, with filter holder
CSF100BPAMY11 ATEX electric fan in wired box, switch and fuses, with filter holder
RSOL Active carbon filter for DIAM125BP
CFN Molecular filtration unit with electronic control certified to NFX15-211 standard (fi lter not included)
CFNL Molecular filtration unit (filter not included)
CSAS Carbon filter for solvents with prefi lter (for CFN)
CSBE Carbon filter for Acids with prefi lter (for CFN)
CSMP Carbon filter for Solvents & Acids with prefilter (for CFN)
CSPF Dust filter (for CFN) replacement
